Remove and Install Topper Blades

1. CAUTION:


   T8T1663-UN-26NOV14

   Whole Topper

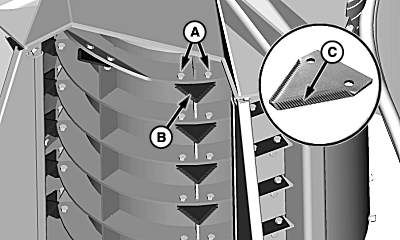

   T8130000510-UN-27FEB13

   Shredder Topper

   A - Cap Screws and Lock Nuts (2 used per blade)

   B - Blade (8 used)

   C - Serrated Side

   Avoid possible serious injury. Shut OFF engine, remove key, and wait for topper to stop completely rotating before replacing blades.

   Avoid possible serious injury from sharp edges. Wear gloves when handling blades.

   Remove hardware (A) and blade (B) from severing disk.

---




2. Install new blades with serrated side (C) facing upwards. Tighten hardware to specification.

   Item	Measurement	Specification
   Topper Blade Cap Screws	Torque	34 N·m (25 lb.-ft.)

   NOTE: Whole topper uses eight blades

   Shredder topper uses 38 blades.
