Engine Speed Switches

NOTE:

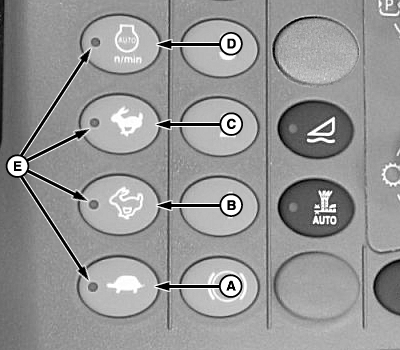

T8T1658
T8T1658-UN-25NOV14

A - Low Engine Speed Switch

B - Medium Engine Speed Switch

C - High Engine Speed Switch

D - Automatic FieldCruise™ Switch

E - Indicator Lights

Engine speed varies if Automatic FieldCruise™ or high idle set point is engaged. See Engine Setup Screen in GreenStar™ 3 2630 Display Screens section for more information.

Engine speed switches are used to increase or decrease engine speed.

  • Low Engine Speed Switch (A) is for low speed—850 rpm.
  • Medium Engine Speed Switch (B) is for medium speed—1500 rpm.
  • High Engine Speed Switch (C) is for high speed—2210 rpm.
  • Automatic FieldCruise™ Switch (D) is for high speed—2000 rpm1.

Indicator lights (E) indicate which switch is selected.

FieldCruise is a trademark of Deere & Company
GreenStar is a trademark of Deere & Company
1 When harvester needs more power, engine speed automatically increases to 2210 rpm. When more power is not needed, engine speed returns to 2000 rpm.

WM05597,0000E73-19-20150112
