Check Tensioner Spring Tension (Tier 2/Stage II and Tier 3/Stage III)

NOTE:

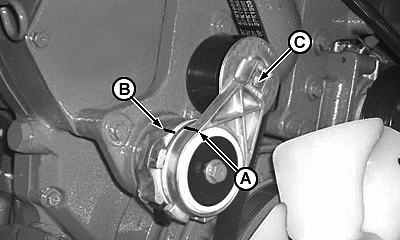

CQ280292
CQ280292-UN-09APR08

A - Mark

B - Mark

C - Bore

A belt tension gauge does not give an accurate measure of belt tension when using an automatic spring tensioner.

Measure tensioner spring tension using a torque wrench and the following steps:

  1. Release tension on belt using a long-handle 1/2 inch breaker bar in tension arm. Remove belt from pulleys.

  2. Release tension on tension arm and remove breaker bar.

  3. Put a mark (A) on swing arm of tensioner as shown.

  4. Measure 21 mm (0.83 in.) from mark (A) and put a mark (B) on tensioner mounting base.

  5. Couple a torque wrench to hole (C) and turn rocker arm until marks (A) and (B) are aligned.

  6. Record torque wrench measurement and compare with specification. Replace tensioner assembly as required.

    ItemMeasurementSpecification
    SpringTension24-28 N·m (17-21 lb.-ft.)
