Visually Inspect Coolant Pump Weep Hole

1.

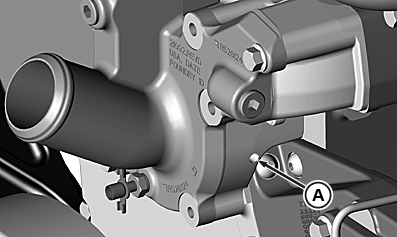

   RG17151-UN-26MAY09

   Coolant Pump Weep Hole

   A - Weep Hole

   Inspect weep hole (A) for oil or coolant leakage. There should be a sponge filter inside weep hole to prevent insects and rodents from entering.
   • Oil leakage indicates a damaged rear seal.
   • Coolant leakage indicates a damaged front seal.



---




2. Replace complete coolant pump assembly if leakage is detected: individual repair parts are not available.
