Adjust Outer Crop Divider Side Skirts (If Equipped)

1.

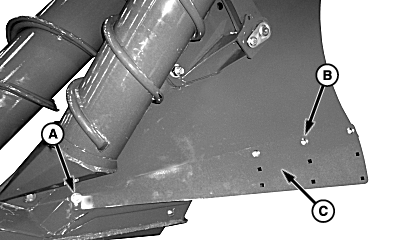

   T8140000375-UN-18MAR14

   A - Cap Screw

   B - Round Head Cap Screws (3 used)

   C - Crop Divider Side Skirt

   Loosen cap screw (A).

---




2. Remove and retain round head cap screws (B), washers, and nuts.

3. Raise or lower crop divider side skirt (C) to desired position.

4. Retain with previously removed round head cap screws, washers, and nuts.

5. Tighten cap screw (A).

6. Repeat on other crop divider.
