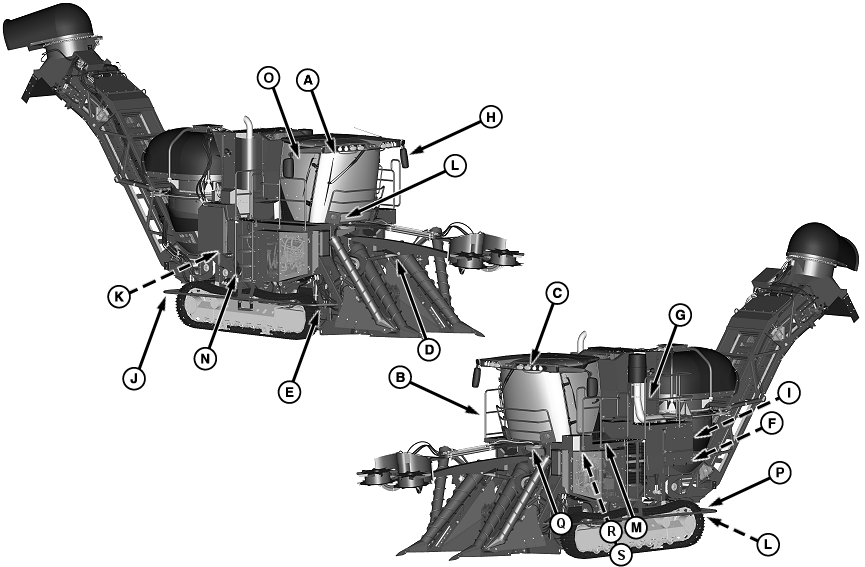

Machine Safety Features
T8T1918-UN-18MAY15
A - Cab Safety Features: Operator Presence System, Seat Belts, Horn, Emergency Exit Hammer, Park Brake, Turn Signals, Door Lock, Mirrors
B - Handrails
C - Driving Lights, Handholds
D - Mechanical Safety Stops (Topper and Lift Cylinders)
E - Shields and Guards
F - Backup Alarm
G - Fire Extinguishers
H - Rear View Mirrors
I - Slow Moving Vehicle Sign
J - Reflectors and Reflective Tape
K - Safety Decals
L - Warning Lights and Turn Signals
M - Slip-Resistant Platforms
N - Slip-Resistant Ladders and Handrails
O - Emergency Exit Door
P - Brush Rails and Service Access
Q - Windshield Cleaning Steps
R - Battery Disconnect Switch
S - Engine Door Safety Switch
In addition to the safety features shown here, other components and systems, safety lights on the machine, and safety messages and instructions in the operator’s manual contribute to the safe operation of this machine when combined with the care and concern of a capable operator.|
