Replace Cab Headlight Bulb

1.

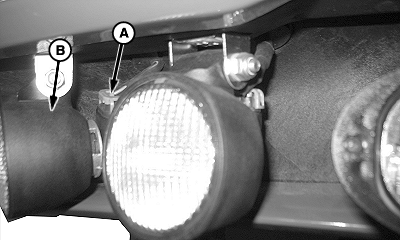

   H96621-UN-25MAY10

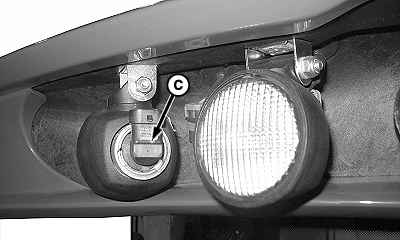

   H96622-UN-25MAY10

   A - Connector

   B - Headlight Assembly

   C - Bulb Assembly

   Disconnect wiring harness connector (A) from headlight assembly (B).

---




2. Rotate light housing toward outside of cab.

3. Turn bulb assembly (C) counterclockwise and remove.

4. NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.

   Replace bulb.

5. Push in bulb assembly and turn clockwise to install into housing.

6. Rotate light housing to previous operating position and connect wiring harness.

7. Repeat on remaining lights as needed.
