Replace Cab Halogen Light Bulb

1.
   H96625-UN-25MAY10


   H96626-UN-25MAY10

   A - Screws

   B - Face Plate Lens

   C - Clip

   D - Bulb Assembly

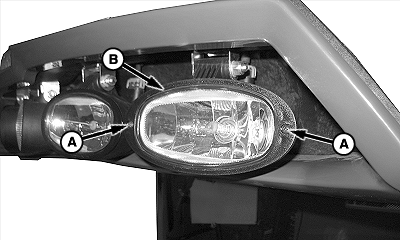

   Remove screws (A) and face plate lens (B) from housing.

---

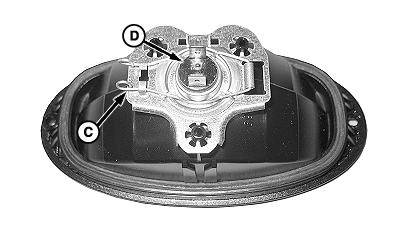

2. Squeeze clips (C) to remove bulb assembly (D).

3. NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.

   Remove and replace bulb.

4. Attach bulb assembly using clips on light bulb base.

5. Align face plate lens with connector inside housing and retain with screws.

6. Repeat on remaining lights as needed.
