Adjust Cab Halogen Lights

NOTE:

H96628
H96628-UN-25MAY10

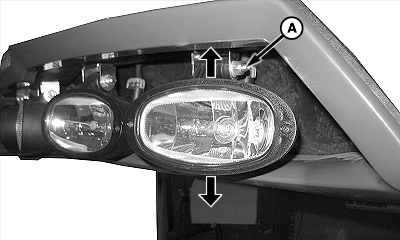

A - Cap Screw

Light assemblies can be adjusted as needed to achieve correct lighting angles.

Loosen cap screw (A). Rotate light assembly up or down to desired position and tighten cap screw. Repeat on remaining lights as needed.
