Replace Field Lights

1. NOTE:

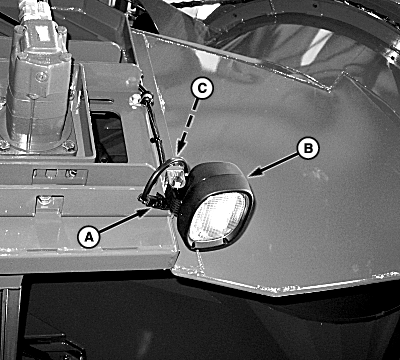

   T8140000068-UN-11FEB14

   Left-Hand Side Of Elevator Shown

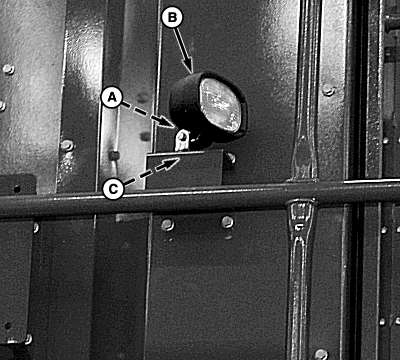

   T8140000069-UN-11FEB14

   Left-Hand Side Of Cooling Tower Shown

   A - Connector

   B - Bulb Assembly

   C - Hardware

   Field lights are on both sides of elevator and cooling tower.

   Disconnect wiring harness connector (A) from bulb assembly (B).

---




2. Remove and retain hardware (C).

3. Replace bulb assembly and retain with previously removed hardware and connect wiring harness connector.
