Replace Map Light

1.

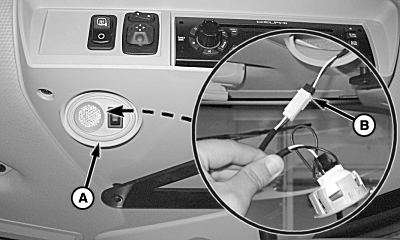

   H97965-UN-13SEP10

   A - Map Light Assembly

   B - Connector

   Remove map light assembly (A) and disconnect wiring harness connector (B).

---




2. Remove and replace map light assembly.

3. Install and orient map light assembly in reverse order as shown.
