Check Base Cutter Gear Case Oil Level

1. IMPORTANT:

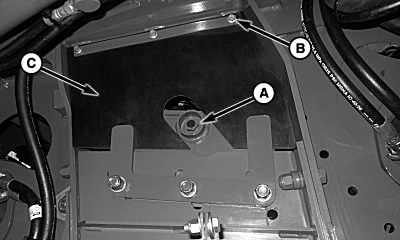

   T8T1742-UN-03DEC14

   Right-Hand Side Of Machine Shown

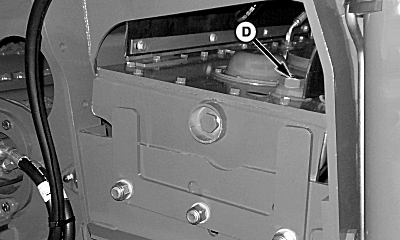

   T8130000830-UN-21FEB13

   A - Sight Gauge

   B - Cap Screw (3 used)

   C - Rubber Shield

   D - Filler Plug

   Always check fluid level when oil is cold.

   Park harvester on a level surface.

---




2. Check sight gauge (A) to verify that oil level is at middle of gauge.

3. If necessary, remove and retain cap screws (B) and rubber shield (C) to access filler plug (D).

4. Add oil as necessary.
