Fill Fuel Tank

1. CAUTION:

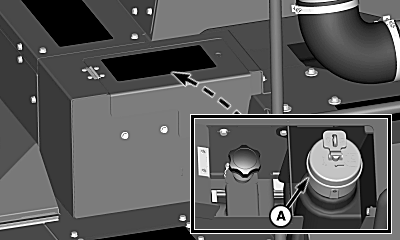

   T8T1777-UN-07JAN15

   A - Fuel Tank Cap

   Handle fuel carefully. Do not refuel machine while smoking or near an open flame or spark. Set park brake, shut OFF engine, and remove key before filling fuel tank.

   Do not overfill fuel tank. Bodily injury can result from fuel splash back. Leakage can result from expansion of fuel.

   IMPORTANT: Clean dirt and debris form cap and fill tube before removing cap.

   Remove fuel tank cap (A).

---




2. Remove strainer from tank and clean if necessary. Install strainer.

3. Fill fuel tank with recommended fuel.

   NOTE: Keep fuel tank full to reduce buildup of condensation.

4. Install fuel tank cap and verify that cap is fully closed.
