Drain Fuel Tank

1. CAUTION:


   T8T1226-UN-12NOV14

   Some Parts Removed For Clarity


   T8T1227-UN-18SEP14

   Some Parts Removed For Clarity

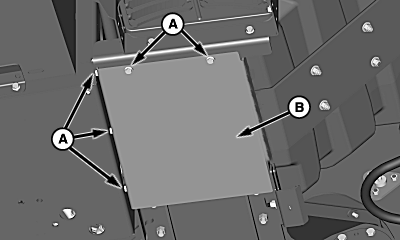

   A - Flange Head Cap Screws (5 used)

   B - Shield

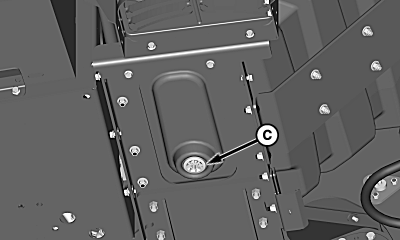

   C - Drain Plug

   Set park brake, shut OFF engine, and remove key before performing maintenance work.

   Close fuel shutoff valve. See Fuel Shutoff Valve in this section.

---




2. Remove and retain flange head cap screws (A) and shield (B).

3. IMPORTANT: Capture and dispose of flammable materials in accordance with local laws and regulations.

   Place approved container below fuel tank.

4. IMPORTANT: Be careful not to lose O-ring on drain plug.

   Remove and retain drain plug (C).

5. IMPORTANT: Apply High Temperature Form-In-Place Gasket to threads of drain plug before installing.

   Install previously removed drain plug.

6. Install previously removed shield and flange head cap screws.
