Side Lighting Locations

T8T1919
T8T1919-UN-07MAY15

T8T1634
T8T1634-UN-20NOV14

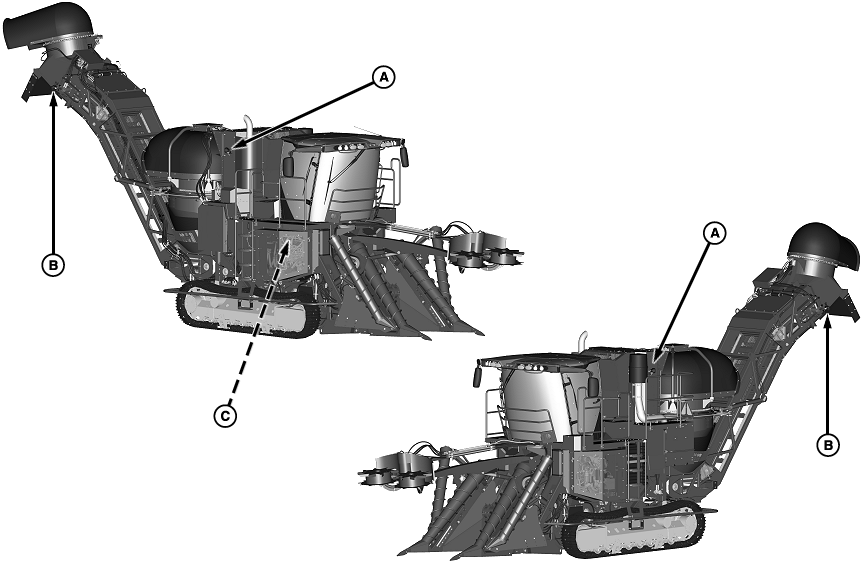

A - Cooling Package Auxiliary Field Lights

B - Elevator Auxiliary Field Lights

C - Engine Compartment Lights

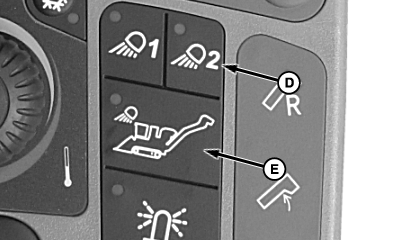

D - Engine Compartment Lights Switch

E - Auxiliary Field Lights Switch

Cooling package and elevator auxiliary field lights (A and B) are controlled by auxiliary field lights switch (E).

Engine compartment lights (C) are controlled by engine compartment lights switch (D).

WM05597,0000F5E-19-20150129
