Front and Rear Lighting Locations

T8T1983
T8T1983-UN-29JAN15

T8T1664
T8T1664-UN-01DEC14

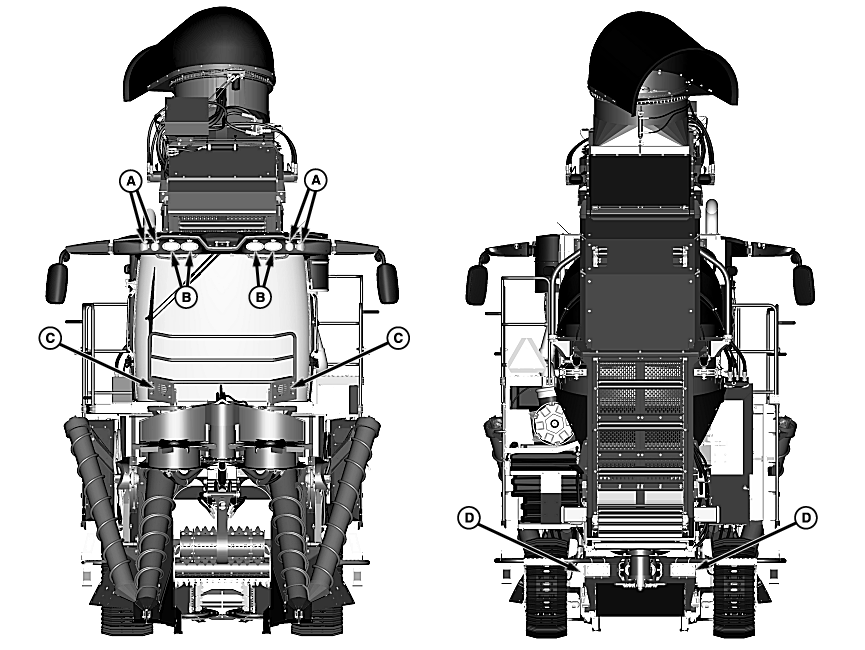

A - Halogen Cab Headlights or High Intensity Discharge (HID) (If Equipped) Cab Headlights

B - Cab Headlights (High and Low Beam)

C - Front Turn Signal Lights

D - Tail Lights

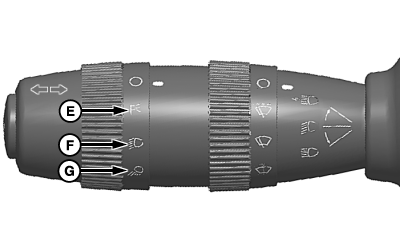

E - Park Light Switch

F - Road Light Switch

G - Field Light Switch

Park light switch (E) controls front turn signal and tail lights (C and D).

Road light switch (F) controls two low beam cab head lights (B).

Field light switch (G) controls eight cab headlights (A and B).

WM05597,0000F5F-19-20150129
