Operate Crop Dividers

•

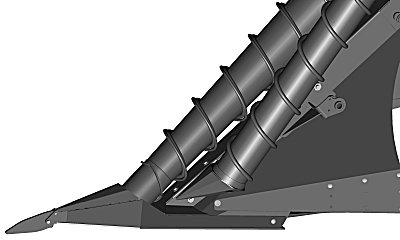

  T8T315-UN-29APR14

  The front of the shoe adjusts automatically with the crop divider. Set the shoe as high as possible to reduce dirt fed into the harvester.

---

• Crop divider shoe points should barely penetrate the soil to lift the cane and feed it into the harvester. If the shoe points are adjusted too low, it feeds soil into the base cutter. In field conditions with stones or heavy weeds, it may be necessary to lift the shoe slightly off the ground.
