Add Hydraulic Oil

1.

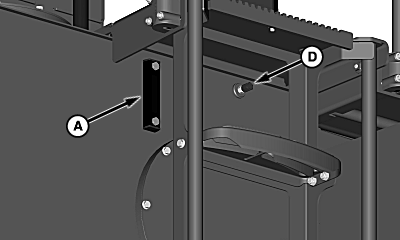

   T8T316-UN-01MAY14

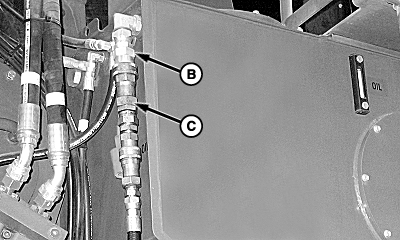

   T8130003032-UN-02DEC13

   Some Parts Removed For Clarity

   A - Sight Gauge

   B - Quick-Disconnect Fitting

   C - Fitting

   D - Vent Cap

   Park harvester on level surface.

   NOTE: Platform must be level, elevator in the raised position and the topper all the way down. Allow 30 minutes for oil to level after shutting down the engine.

---




2. When oil is cold, oil level must be at 6 mm (1/4 in.) below top of sight gauge (A). Add oil when oil level is below that position.

3. Remove protective cover and clean quick-disconnect fitting (B) on rear of tank. Clean the fitting (C) on the pump hose and attach it to quick-disconnect fitting on tank.

4. Remove and retain vent cap (D) on side of hydraulic reservoir.

5. Pump oil into hydraulic reservoir until it reaches 6 mm (1/4 in.) below top of sight gauge.

6. Install previously removed vent cap.

7. Remove pump hose and replace protective cover.
