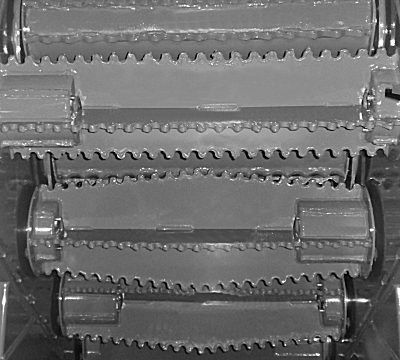

Feed Rollers
T8T409-UN-08MAY14
The feed rollers carry the cane from base cutter to chopper.
The speed that the cane passes through the harvester in comparison
with the constant speed of the chopper drums determines billet length.
See Billet Length Manual Adjustment (If Equipped) in this section
for more information.
Cleaning also occurs through gaps, between feed rollers and
choppers, as the cane passes through the rollers. These gaps allow
dirt and rocks to fall from the cane before chopping.
|
|
WM05597,0000F86-19-20140508
|
|
