Operate Feed Rollers

  1. T8T410
    T8T410-UN-08MAY14

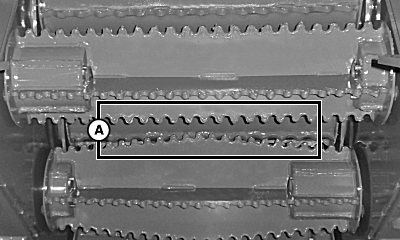

    A - Teeth

    Maintain teeth (A) on feed rollers, since sharp or rough edges damage cane.
  2. Make sure that floating rollers are moving up and down freely. Stuck rollers can damage cane or cause choking.
  3. Properly operating rollers ensure well-regulated billet size.
  4. Keep the rollers free of mud and debris to prevent slippage.

WM05597,0000F87-19-20141210
