Crop Divider Floating Side Walls (If Equipped)

IMPORTANT:

T8T413
T8T413-UN-14MAY14

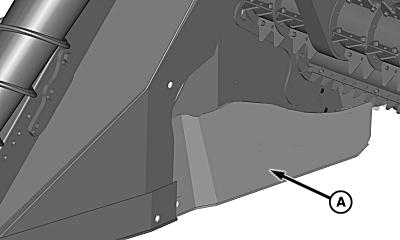

Inside Of Crop Divider Shown

A - Crop Divider Floating Side Walls

Avoid damage to crop divider floating side walls. Always raise harvester to transport position when backing up.

The crop divider floating side walls (A) are designed to prevent cane from getting outside the mouth of the harvester after being gathered and cut. The side walls drag on ground behind crop dividers to gather cane. When harvester is in cut position, the side walls extend harvester walls to the ground.
