Jack Locations

CAUTION:

TS229
TS229-UN-23AUG88

T8130000220
T8130000220-UN-21JAN13

T8T426
T8T426-UN-16MAY14

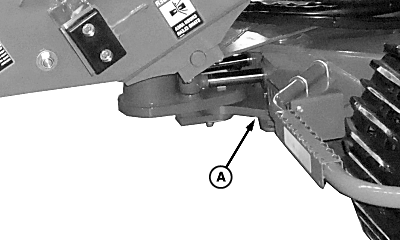

A - Rear Jack Location

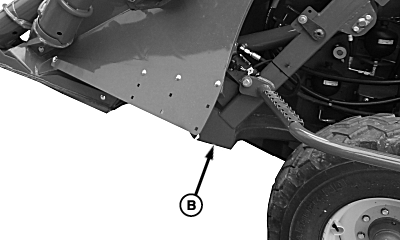

B - Front Jack Location

Avoid serious injury or death. Do NOT support machine weight with lifting device. Position blocks or stands under machine after lifting.

Consider height of machine when lifted to avoid overhead obstructions.

IMPORTANT: Using jack locations other than two front and two rear shown can cause machine damage.

NOTE: Jack locations are on both sides of machine at front and rear.

To raise the harvester with a jack or similar lifting device:

  • Position jack under rear jack location (A) on rear frame at area near tow points.
  • Position jack under front jack location (B) on front frame at crop divider mounting area.
