Adjust Inner Crop Divider Side Skirts (If Equipped)

1. NOTE:

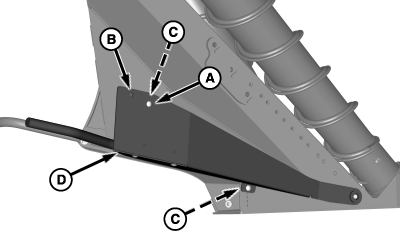

   T8T533-UN-02JUN14

   Top Position Shown

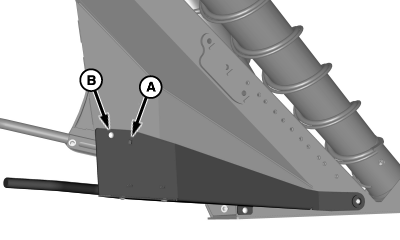

   T8T534-UN-02JUN14

   Bottom Position Shown

   A - Forward Hole

   B - Rearward Hole

   C - Hardware (2 used)

   D - Side Skirt

   Inner crop divider side skirts have five positions. The forward hole (A) is used for the top four positions. The rearward hole (B) is for the bottom position.

   Remove and retain hardware (C).

---




2. Adjust side skirt (D) to desired position.

3. Install previously removed hardware.

4. Repeat on remaining crop divider.
