Light Switches

NOTE:

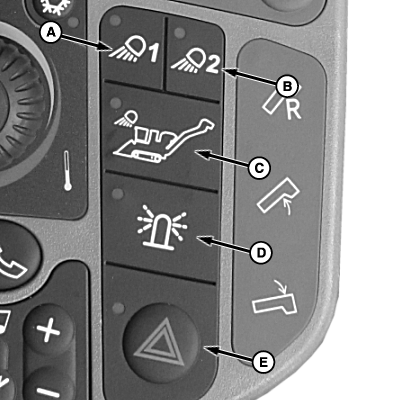

T8T540
T8T540-UN-03JUN14

For more detailed information on lighting locations on the machine, see Lights and Signals section.


Not Active (A):

This switch is not used.


Engine Compartment Lights Switch (B):

Press switch to turn engine compartment lights ON or OFF.


Auxiliary Field Lights Switch (C):

Press switch to turn auxiliary field lights ON or OFF.


Beacon Lights Switch (D):

Press switch to turn beacon lights ON or OFF.


Hazard Warning Lights Switch (E):

Press switch to turn hazard warning lights and beacon lights ON or OFF.

WM05597,0000FA2-19-20141007
