Rear Axle Service

CAUTION:

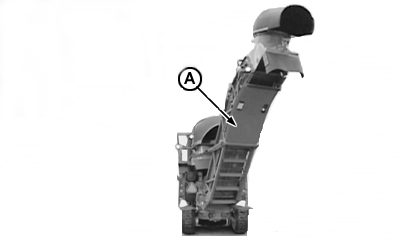

T8130000149-UN-22JAN13

A - Elevator

1. Completely lower harvester. Put a stand under the elevator swing table.

2. Slowly raise harvester until track slightly lifts off the ground.

3. CAUTION: Avoid falling hazard. Verify that the harvester is properly supported.

   Place a stands front jack locations. See Jack Locations section.

4. Slowly lower harvester until front portion of the track lifts off the ground.

5.

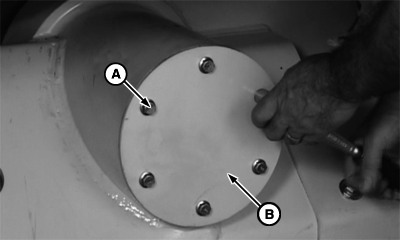

   T8130000230-UN-22JAN13

   A - Cap Screws (6 used)

   B - Cover

   Remove cap screws (A) and cover (B).

---




6. NOTE:

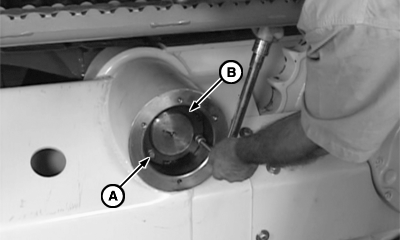

   T8130000231-UN-22JAN13

   A - Cap Screws (3 used)

   B - Outer Nut

   Remove and discard all grease.

   Loosen cap screws (A) and remove outer nut (B).

---




7. NOTE:

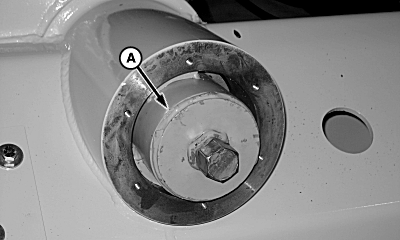

   T8130000232-UN-22JAN13

   A - Tool

   Tool 0290289270 (A) must be used. See your John Deere dealer.

   Tighten inner nut to specification.

   Item	Measurement	Specification
   Rear Axle Inner Nut	Torque	814 N·m (600 lb.-ft.)

---




8.
   CQ282552-UN-01DEC08

   A - Outer Nut

   B - Cap Screws (3 used)

   Install outer nut (A) and tighten until it contacts inner nut.

---




9. Loosen outer nut slightly until its holes are aligned with holes on inner nut.

10. Turn outer nut back 360° (1 turn).

11. Tighten cap screws (B) to specification.

    Item	Measurement	Specification
    Outer Nut Cap Screws	Torque	50 N·m (37 lb.-ft.)

12.

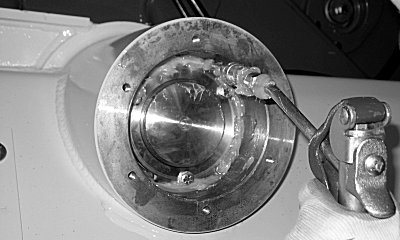

    T8130000233-UN-22JAN13

    Fill compartment with grease.

---




13.

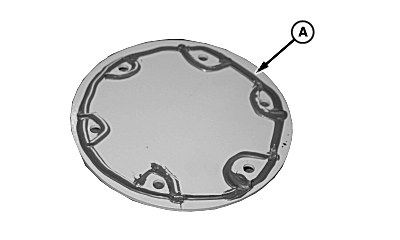

    T8130000234-UN-22JAN13

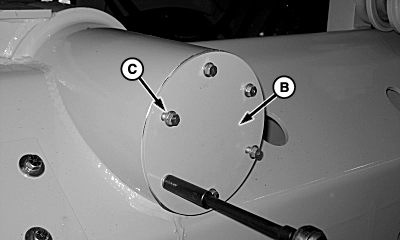

    T8130000235-UN-22JAN13

    A - Silicon

    B - Cover

    C - Cap Screws (6 used)

    Apply silicon (A) to the inside of cover (B).

---




14. Install cover (B) and cap screws (C). Tighten cap screws to specification in a star pattern.

    Item	Measurement	Specification
    Cap Screws	Torque	47 N·m (35 lb.-ft.)
