Change Base Cutter Gear Case Oil

1. IMPORTANT:

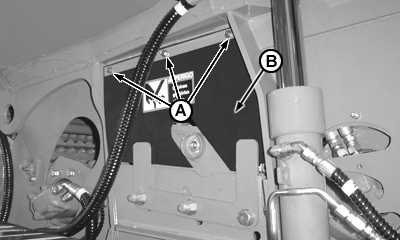

   NW271330-UN-15MAY06

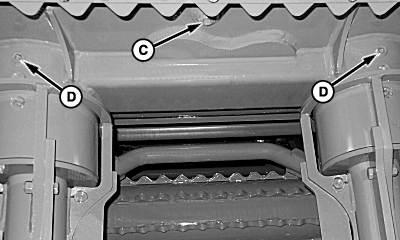

   T8130000130-UN-17JAN13

   A - Cap Screws (3 used per side)

   B - Rubber Shield

   C - Gear Case Drain Plug

   D - Leg Drain Plugs

   Avoid gear case oil contamination. Clean area around components before performing any service.

   Park harvester on a level surface.

---




2. Run engine, with base cutter engaged, approximately 5 minutes to warm gear case oil.

3. Shut OFF engine and remove key. Wait for harvesting functions to stop completely.

4. Remove cap screws (A) and rubber side shield (B).

5. Remove gear case drain plug (C) and leg drain plugs (D). Allow oil to drain completely.

   NOTE: Dispose of waste oil according to all employer and government environmental guidelines.

6. Reinstall all three drain plugs.

7.

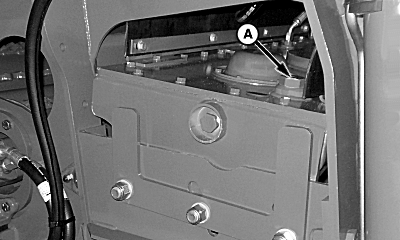

   T8130000196-UN-18JAN13

   A - Fill Plug

   Remove fill plug (A) from top of gear case.

---




8. Fill gear case with 85W140 oil. Allow time for oil to settle.

9. Check oil level at sight gauge. Level must be at middle of sight gauge.

   Item	Measurement	Specification
   Base Cutter Gear Case	Capacity (Dry)	8.97 L (2.37 gal.)

10. Reinstall fill plug, rubber shield, and cap screws.

11. Start engine, engage base cutter, and allow to run for several minutes.

12. Shut OFF engine and remove key. Wait 10 minutes and check oil level at sight gauge. Add oil as necessary.
