Side Wiper Switches (If Equipped)

NOTE:

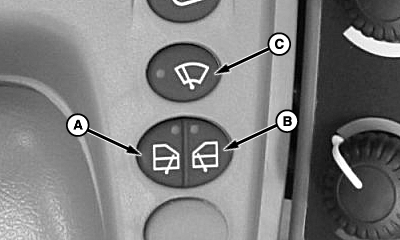

T8T1293
T8T1293-UN-25SEP14

A - Left-Hand Side Wiper Switch

B - Right-Hand Side Wiper Switch

C - Side Washer Switch

Key switch must be ON or machine running for side wiper switches to operate.

Side wiper switches on the armrest control the following:

  • Left-Hand Side Wiper Switch (A)
  • Right-Hand Side Wiper Switch (B)
  • Side Washer Switch (C)

WM05597,00010D3-19-20141006
