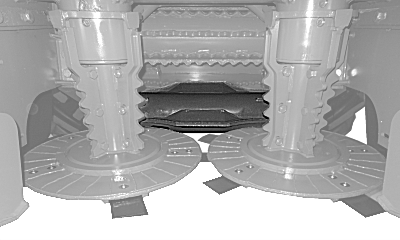

Butt-Lifter Feed Roller

T8T1299
T8T1299-UN-29SEP14

The butt-lifter feed roller is powered by two hydraulic motors, one on each end of the roller. This roller is designed to lift the cane from the cut end and help direct it up the feed roller system.

The butt-lifter is available in 3 configurations:

  • 3 Paddle Closed—Used in areas that are normally dry during harvest.
  • 3 Paddle Open—Used in areas where conditions are rainy and muddy during harvest.
  • 4 Bar Open—Minimizes soil intake and mud buildup in rainy and muddy conditions.

WM05597,00010E4-19-20150113
