Varitorque (Wheel Machines Only)

1. NOTE:


   T8T1534-UN-27OCT14


   T8T1535-UN-04MAY15


   T8T1561-UN-25NOV14

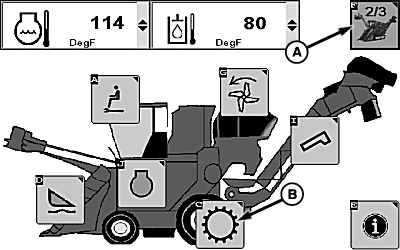

   A - Sugar Main Softkey

   B - Drivetrain Control Softkey

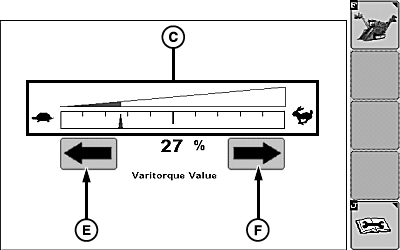

   C - Varitorque Graph

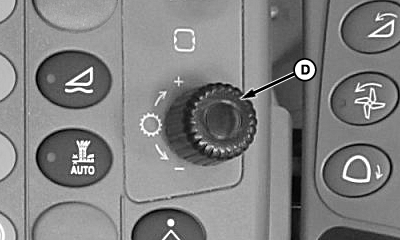

   D - Propulsion Encoder

   E - Decrease Varitorque Percentage Softkey

   F - Increase Varitorque Percentage Softkey

   Machine must be in medium travel speed to use varitorque adjustment.

   Select sugar main softkey (A) until sugarcane main page 2 of 3 is displayed as shown.

---




2. Select drivetrain control softkey (B).

3. Select varitorque graph (C) and touch corresponding plus (+) or minus (-) softkey to increase or decrease varitorque percentage.

   NOTE: Varitorque may also be adjusted by propulsion encoder (D) on armrest or selecting decrease or increase varitorque percentage softkey (E or F).

   A single select is slow advance. A select and hold is quick advance.
