Configure Detail Machine Information

1. NOTE:

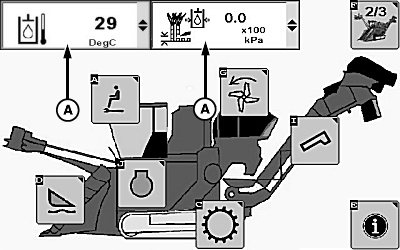

   T8T777-UN-03OCT14

   Sugarcane Main Page 2 Of 3

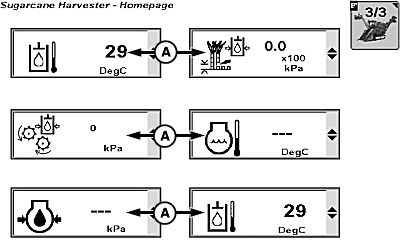

   T8T779-UN-03OCT14

   Sugarcane Main Page 3 Of 3

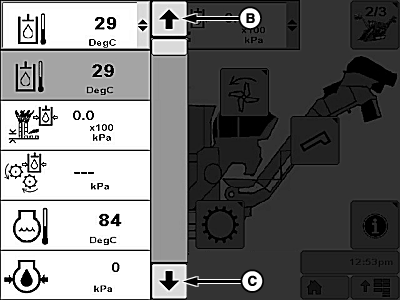

   T8T778-UN-03OCT14

   A - Machine Setting Softkeys

   B - Scroll Up Softkey

   C - Scroll Down Softkey

   Shows detailed machine information. Allows operator to configure screen and the ability to monitor three items at once.
   Select machine setting softkey (A) you wish to replace.
2. Select scroll up softkey (B) or scroll down softkey (C) to locate desired machine setting softkey.
3. Select desired machine setting softkey to replace original.
4. Detailed machine information may show any of the following:

• Fuel consumed per hour
• Engine intercooler temperature
• Optimal operating speed (rpm)
• Engine torque less accessory torque (%)
• Engine load at RPM (%)
• Accelerator pedal position (%)
• Calculated engine torque (%)
• Driver demanded engine torque
• Throttle position (%)
• Engine derate request (seconds)
• Right rear wheel speed
• Left rear wheel speed
• Duty cycle of propulsion pump (%)
• Handle based drive position (%)
• Steering wheel angle (degree)
• Primary propulsion handle position (%)
• Secondary propulsion handle position (%)
• Track machine steering bias position
• Elevator speed set point
• Extractor hydraulic pressure
• Extractor speed set point (rpm)
• Extractor smart mode set speed (rpm)
• Requested engine speed (rpm)
• Right base cutter position (%)
• Left base cutter position (%)
• Elevator drive motor speed (rpm)
• Battery power input 1 (volts)
• Wheel based vehicle speed
• Rear feed speed (rpm)
• Rear feed pressure
• Engine intake air temperature
• Engine oil filter pressure
• Fuel delivery pressure
• Fuel temperature
• Engine coolant temperature
• Left crop divider hydraulic pressure
• Right crop divider hydraulic pressure
• Left floating crop divider hydraulic pressure set point
• Right floating crop divider hydraulic pressure set point
• Left crop divider position (%)
• Right crop divider position (%)
• Extractor fan speed (rpm)
• Hydraulic oil temperature
• Fuel Level (%)
• Chopper speed (rpm)
• Chopper hydraulic pressure
• Base cutter hydraulic pressure
• Base cutter speed (rpm)
• Base cutter height set point (%)
• Base cutter position (%)
