Maximum Harvester Speed (Track Machines Only)

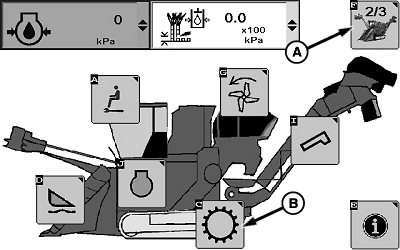

T8T674-UN-03OCT14

Sugarcane Main Page 2 Of 3

T8T675-UN-04MAY15

T8T676-UN-03OCT14

A - Sugar Main Softkey

B - Drivetrain Control Softkey

C - Maximum Harvester Speed Setup Softkey

D - ON/OFF Checkbox

E - Maximum Harvesting Speed

Select drivetrain control softkey (B).

Select maximum harvester speed setup softkey (C).

Select ON/OFF checkbox (D) to activate. Checkmark appears if activated.

Select maximum harvesting speed (E) to set maximum ground speed when base cutter is active.
