Track Steer Bias (Track Machines Only)

T8T674-UN-03OCT14

Sugarcane Main Page 2 Of 3

T8T677-UN-04MAY15

T8T1569-UN-25NOV14

A - Sugar Main Softkey

B - Drivetrain Control Softkey

C - Left Steer Bias Softkey

D - Right Steer Bias Softkey

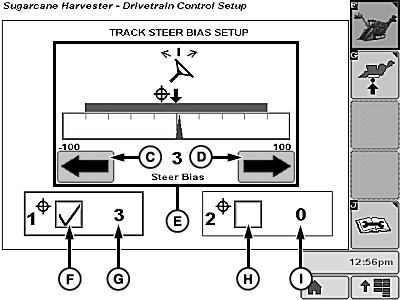

E - Steer Bias Graph

F - Checkbox

G - Steer Bias Set Point 1

H - Checkbox

I - Steer Bias Set Point 2

J - Propulsion Encoder

Select drivetrain control softkey (B).

Select left steer bias softkey (C) or right steer bias softkey (D) to adjust steer bias as desired. Steer bias is represented as a graph (E) and a number.

NOTE: Negative numbers indicate left steer bias. Positive numbers indicate right steer bias.

A single select is slow advance. A select and hold is quick advance.

Select checkbox (F) to enable track steer bias. Steer bias set point 1 (G) is displayed.

Select checkbox (H) to enable track steer bias set point 2. Steer bias set point 1 (I) is displayed.

NOTE: Operator cycles between set point 1 and set point 2 with configurable switch on multi-function lever.

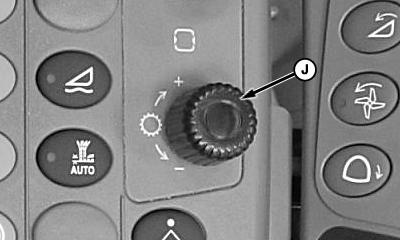

Track steer bias may also be adjusted by propulsion encoder (J) on armrest.
