Diagnostics—Calibrations

NOTE:

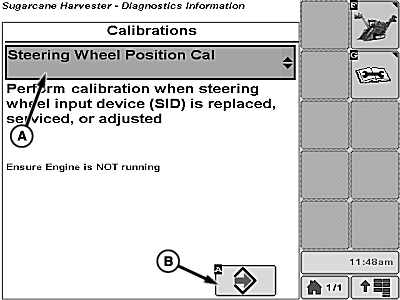

T8T751
T8T751-UN-08JUL14

A - Calibration Category Selection

B - Accept Softkey

Calibrations are done using instructions shown on screen. Operator selects which calibration and highlights calibrate softkey, and is guided through procedure.

  1. Select calibration category selection (A) to choose what to calibrate.

  2. Select accept softkey (B) to begin calibration.

WM05597,000112D-19-20141114
