Regional Settings, Languages, Time/Date Settings, Units of Measurement

T8120001781-UN-09OCT12

H95849-UN-31MAR10

Display
Settings Softkey

Select display settings softkey.

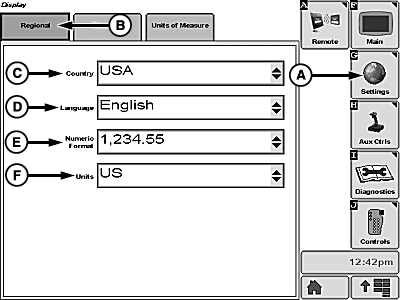

Regional Menu Settings:

T8T756-UN-08JUL14

A - Settings Softkey

B - Regional Settings Tab

C - Country Menu

D - Language Menu

E - Numeric Format Menu

F - Units Menu

Select desired menu:

• Country Menu (C)
• Language Menu (D)
• Numeric Format Menu (E)
• Units Menu (F)

Select desired choice from menu.

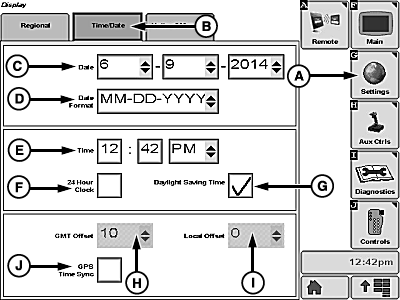

Time/ Date Settings:

T8T757-UN-08JUL14

A - Settings Softkey

B - Time/Date Tab

C - Date Menu (Month, Day, Year)

D - Date Format Menu

E - Time Menu (Hours, Minutes, and a.m or p.m.)

F - 24 Hour Box

G - Daylight Savings Time Box

H - GMT (Greenwich Mean Time) Offset

I - Local Offset

J - GPS Time Sync Box

NOTE: If a Global Position Satellite (GPS) position receiver is detected, checkbox appears and GPS date and time is available automatically from receiver.

If no position receiver is detected, date and time must be entered manually.

Select desired menu:

• Date Menu (C)
• Date Format Menu (D)
• Time Menu (E)
• 24 Hour Box (F)
• Daylight Savings Time Box (G)
• Greenwich Mean Time Offset (H)
• Local Offset (I)
• GPS Time Sync Box(J)

NOTE:

• Checked—time is displayed as military time (24 hour clock).
• Unchecked—time is displayed in standard time (12 hour clock).

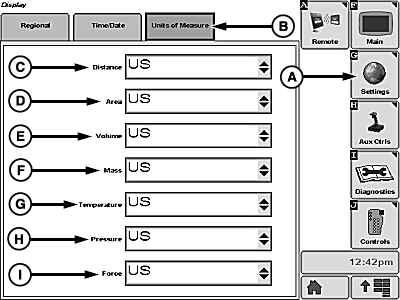

Units of Measure Settings:

T8T758-UN-08JUL14

A - Settings Softkey

B - Units of Measure Tab

C - Distance Menu

D - Area Menu

E - Volume Menu

F - Mass Menu

G - Temperature Menu

H - Pressure Menu

I - Force Menu

Select desired menu:

• Distance Menu (C)
• Area Menu (D)
• Volume Menu (E)
• Mass Menu (F)
• Temperature Menu (G)
• Pressure Menu (H)
• Force Menu (I)

Select desired choice from menu.
