Layout Manager Application

T8120001781-UN-09OCT12

H95850-UN-31MAR10

Layout Manager
Application Softkey

Select layout manager softkey.

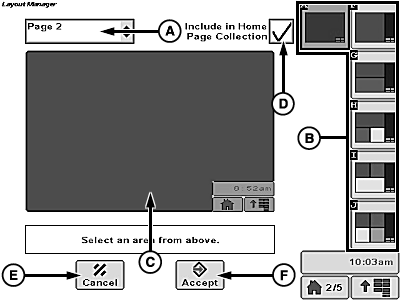

Home Page Region Setup:

T8T763-UN-09JUL14

A - Region Menu

B - Home Page Layouts

C - Home Page Region

D - Include in Home Page Collection Box

E - Cancel Softkey

F - Accept Softkey

Select region menu (A).

Screen displays the following:

• Page 1
• Page 2
• Page 3
• Page 4
• Page 5

Select desired home page.

Select desired home page layout (B).

Select desired area from home page region (C).

Choose desired home page area from available options.

Select include in home page collection box (D).

• Checked - selected home page is included in home page cycle.
• Unchecked - selected home page is not included in home page cycle.

NOTE: Select home softkey on any screen to cycle through selected home pages.

Select cancel softkey (E) to cancel layout manager setup.

Select accept softkey (F) to accept layout manager setup.
