Access Manager Application

T8120001781-UN-09OCT12

H95852-UN-31MAR10

Access Manager
Application Softkey

Select layout manager softkey.

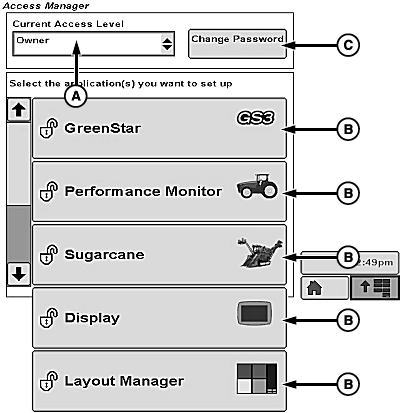

T8T766-UN-09JUL14

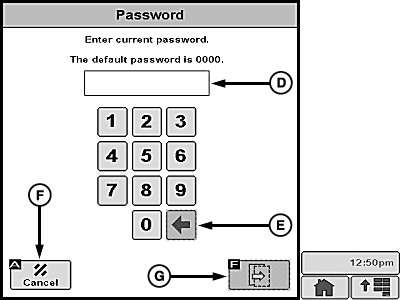

T8T767-UN-09JUL14

A - Access Level Menu

B - Application

C - Change Password Softkey

D - Password Menu

E - Back Arrow Softkey

F - Cancel Softkey

G - Enter/Accept Softkey

Access Level Settings:

Allows owner of machine to lock/unlock certain features. If feature is locked, only the owner is able to make changes/adjustments. If feature is unlocked, both the owner and operator are able to make changes/adjustments.

Select access level menu (A).

Screen displays the following:

NOTE: Must be in owner mode to lock/unlock application (B). Password is required when changing from operator mode back to owner mode.

• Operator Mode - certain changes/adjustments are made available when set by owner.
• Owner Mode - determines which changes/adjustments are made available to operators.

Select desired access level.

Change Password:

Allows owner of machine to set password preventing operator from making changes/adjustments previously set by owner.

NOTE: If password is lost or forgotten, see your John Deere dealer for further information.

Select change password softkey (C).

Select digits from calculator to enter into password menu (D).

NOTE: Select back arrow softkey (E) to delete digits if a mistake is made.

Select cancel softkey (F) to cancel and return to previous screen.

Select enter/accept softkey (G).

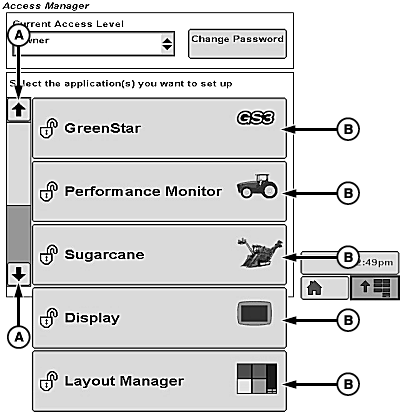

T8T768-UN-09JUL14

A - Up and Down Arrow Softkeys

B - Application

Lock/Unlock Applications:

Allows owner the ability to lock or unlock certain features. When locked only certain features are made visible to operator.

Select up or down arrow softkey (A) to scroll through different applications:

• GreenStar
• Performance Monitor
• Sugarcane
• Display
• Layout Manager

Select desired application (B).

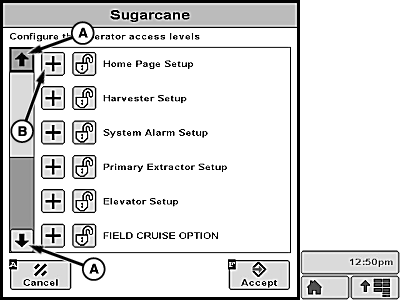

T8T769-UN-09JUL14

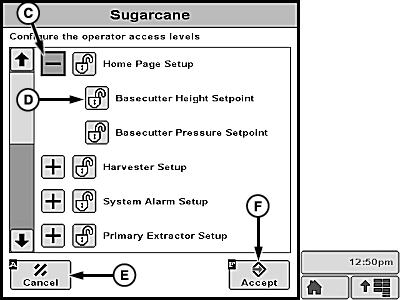

T8T770-UN-09JUL14

A - Up and Down Arrow Softkeys

B - Plus Softkey

C - Minus Softkey

D - Lock and Unlock Softkey

E - Cancel Softkey

F - Accept Softkey

Select plus softkey (B) (expands subfunction) or minus softkey (C) (collapses subfunction).

Select desired subfunction.

NOTE: Subfunction toggles between lock and unlock softkey (D).

Gray lock means that only some subfunctions are locked.

• Lock Softkey—operator is not able to make changes or adjustments. Owner is only able to make changes or adjustments.
• Unlock Softkey—both owner and operator are able to make changes or adjustments.

Repeat as needed for remaining applications.

NOTE: Select cancel softkey (E) to cancel changes and return to previous screen.

Select accept softkey (F).
