Road Transport Disconnect Switch

T8T1554
T8T1554-UN-25NOV14

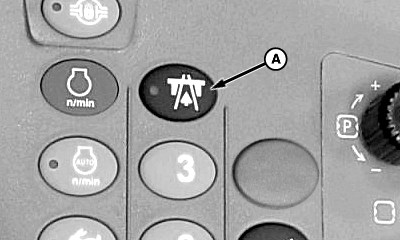

A - Road Transport Disconnect Switch

Road transport disconnect switch (A) must be in transport mode when transporting machine on roadway.

When road transport disconnect switch is pressed, indicator light illuminates and transport mode is turned ON. Road transport disconnect switch prevents the following functions:

  • Harvesting functions (base cutter, chopper, feed rollers, crop divider scrolls)
  • Auxiliary harvest functions (side knives, topper, elevator, primary extractor fan, secondary extractor fan)
  • Timed elevator swing

Brakes are applied together (wheel machines only).

When field operation is desired, press road transport disconnect switch for two seconds to turn OFF transport mode. Indicator light turns OFF.
