Harvesting Functions Switch

NOTE:

T8T1558
T8T1558-UN-06NOV14

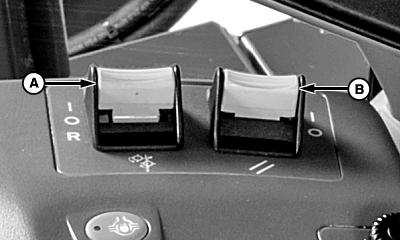

A - Harvesting Functions Switch

B - Auxiliary Functions Switch

Harvesting functions can be engaged in forward or reverse. Switch has a forward position, an off position, and a reverse position.

Harvesting functions switch (A) engages crop divider scrolls, knockdown rollers, base cutter, feed rollers, and chopper in forward or reverse rotation.

NOTE: Auxiliary functions switch (B) must be cycled before harvesting functions engage.

To engage harvesting functions:

  1. Push down and push forward on harvesting functions switch (A).

  2. Push down and push forward on auxiliary functions switch (B).

To disengage harvesting functions push down and pull back on harvesting to middle position.

If operator leaves seat for five seconds with harvesting functions engaged, presses harvesting functions quick stop switch, or turns off machine, harvesting functions and auxiliary functions switches must be cycled.

  1. Push down and pull back on harvesting functions switch (A) to middle position.

  2. Push down and pull back on auxiliary functions switch (B).

  3. Push down and push forward on harvesting functions switch.

  4. Push down and push forward on auxiliary functions switch.
