Auxiliary Functions Switch

NOTE:

T8T1559
T8T1559-UN-06NOV14

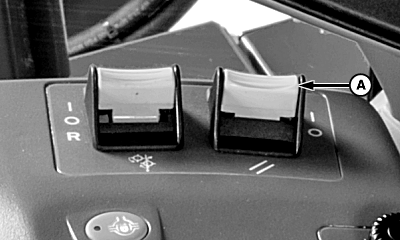

A - Auxiliary Functions Switch

Auxiliary functions switch (A) must be turned on for harvesting functions to engage. See Harvesting Functions Switch in this section.

Auxiliary functions switch (A) must be turned on to enable the following functions:

  • Side Knives
  • Primary Extractor
  • Elevator
  • Secondary Extractor

Push down and push forward on switch to enable auxiliary functions.

Push down and pull back on switch to disable auxiliary functions.

WM05597,0001148-19-20141124
