Advanced Setup

1.

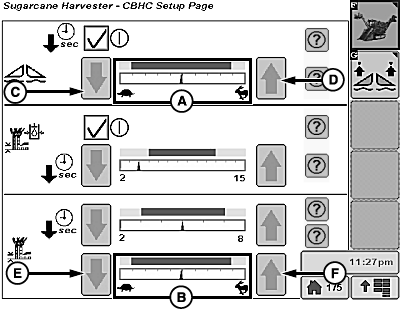

   T8T1895-UN-29APR15

   A - Floating Crop Divider Sensitivity Meter

   B - Contour Base Cutter Height Sensitivity Meter

   C - Decrease Softkey

   D - Increase Softkey

   E - Decrease Softkey

   F - Increase Softkey

   Set floating crop divider sensitivity (A) and contour base cutter height sensitivity (B) meters at recommended starting sensitivity based on field type.

   Field Surface Type	Recommended Starting Sensitivity
   Mostly Flat	1/2
   Uneven	3/4

---




2. Press corresponding sensitivity increase or decrease softkeys (C—F) to adjust sensitivities as needed.

   • If downed cane or excessive stubble is being left at dips in field, raise sensitivities.
   • Ideal sensitivity setting reacts as fast as possible while not being uncomfortable for operator.



For more information, see Floating Crop Dividers and Contour Base Cutter Height Control (If Equipped) in GreenStar™ 3 2630 Display Screens section.
