Adjust Crop Divider Manual Tilt (If Equipped)

1. CAUTION:


   T8T1239-UN-24SEP14

   Some Parts Removed For Clarity

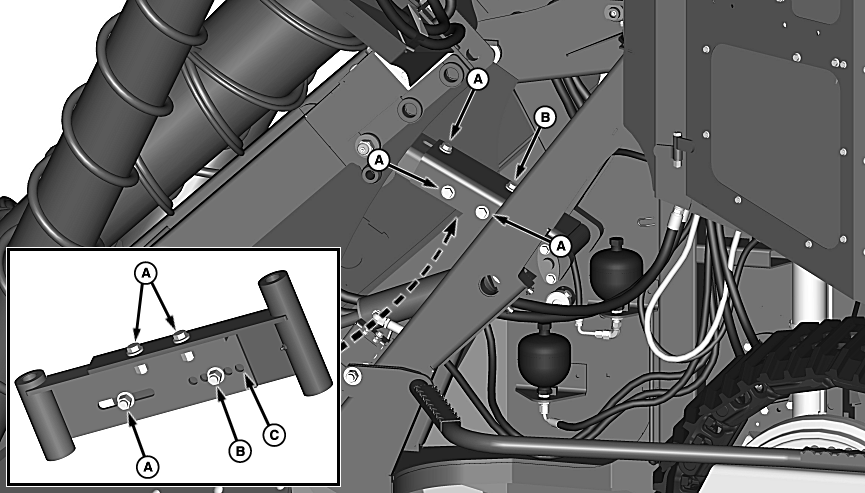

   A - Hardware (3 used)

   B - Hardware

   C - Mounting Position (5 used)

   Avoid serious injury or death from falling equipment. Support weight of crop divider assembly before removing or loosening any hardware.

   Crop divider is heavy. Approximate weight of crop divider is 386 kg (850 lb.). Use appropriate lifting device to support and position divider.

   Support crop divider with appropriate lifting device.

---




2. Loosen hardware (A) and remove hardware (B) from linkage.

3. Raise or lower front of crop divider until tilt is at desired setting.

4. Install previously removed hardware (B) in desired mounting position (C).

5. Tighten hardware (A).

6. Repeat on remaining crop divider.
