Adjust Crop Divider Hydraulic Tilt (If Equipped)

T8T1633
T8T1633-UN-20NOV14

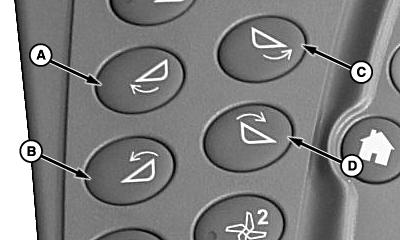

A - Left-Hand Crop Divider Tilt Up Switch

B - Left-Hand Crop Divider Tilt Down Switch

C - Right-Hand Crop Divider Tilt Up Switch

D - Right-Hand Crop Divider Tilt Down Switch

Press crop divider tilt up or down switch (A—D) to adjust crop divider tilt to desired position.

WM05597,000116F-19-20141119
