Elevator Switches

NOTE:

T8T1906-UN-27JAN15

T8T1653-UN-25NOV14

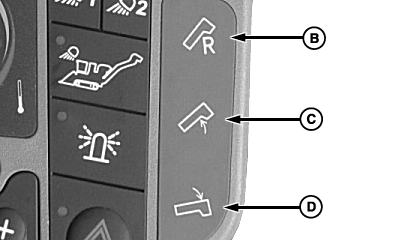

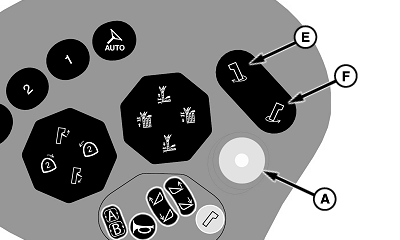

A - Elevator Engage Switch

B - Elevator Reverse Switch

C - Elevator Raise Switch

D - Elevator Lower Switch

E - Elevator Swing Left Switch

F - Elevator Swing Right Switch

Press elevator engage switch (A) to turn elevator ON or OFF. Press and hold elevator reverse switch (B) to operate elevator in reverse.

Press elevator raise or lower switch (C and D) to change elevator to desired position.

IMPORTANT: Avoid machine damage. Do NOT rotate elevator unless elevator is completely raised.

Press elevator swing left or right switch (E and F) to move elevator to desired position.
