Topper Switches

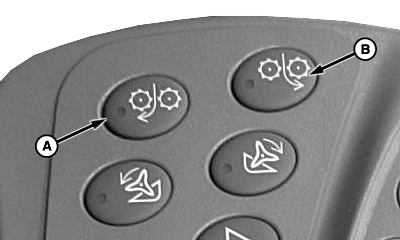

T8T1641
T8T1641-UN-24NOV14

A - Left-Hand Topper Engage Switch

B - Right-Hand Topper Engage Switch

Press left-hand topper engage switch (A) to discharge to left-hand side.

Press right-hand topper engage switch (B) to discharge to right-hand side.

NOTE: Indicator light illuminates indicating which direction topper is discharging.

Press switch with illuminated indicator light to turn OFF topper.

WM05597,0001173-19-20141124
