Secondary Extractor Switches (If Equipped)

NOTE:

T8T1645
T8T1645-UN-24NOV14

T8T1905
T8T1905-UN-27JAN15

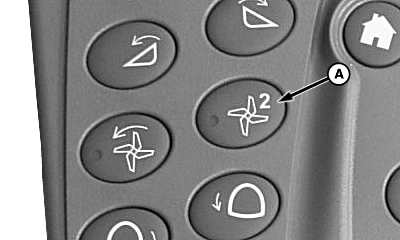

A - Secondary Extractor Engage Switch

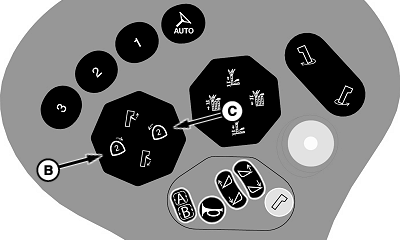

B - Secondary Extractor Hood Rotate Left Switch

C - Secondary Extractor Hood Rotate Right Switch

Auxiliary functions switch must be turned on to engage secondary extractor fan.

Press secondary extractor engage switch (A) to turn ON secondary extractor fan.

Press secondary extractor hood rotate left or right switch (B and C) to rotate secondary extractor to desired position.

WM05597,0001176-19-20150127
