Brake Pedals (Wheel Machines Only)

IMPORTANT:

T8T562
T8T562-UN-13JUN14

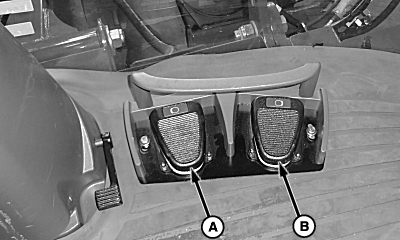

Right-Hand Side Of Steering Column

A - Left-Hand Brake Pedal

B - Right-Hand Brake Pedal

Park brake MUST be used in an emergency, to stop machine movement.

Left Brake Pedal (A)—Press and hold to slow or stop left-hand rear wheel to aid in turning.

Right Brake Pedal (B)—Press and hold to slow or stop right-hand rear wheel to aid in turning.

NOTE: To operate both brakes together, operator must engage transport switch on armrest console.
