Multi-Function Lever Controls

Propulsion

T8T1566-UN-12NOV14

A - Forward

B - Back

C - Center

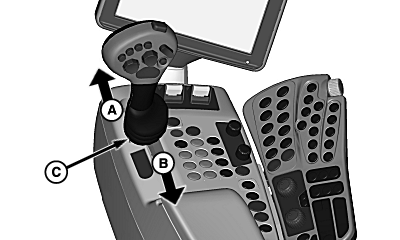

• Move multi-function lever forward (A) to move harvester forward.
• Pull multi-function lever back (B) to move harvester in reverse.
• Move multi-function lever to the center (C) to put machine in neutral.

Switch Identification

T8T1900-UN-23JAN15

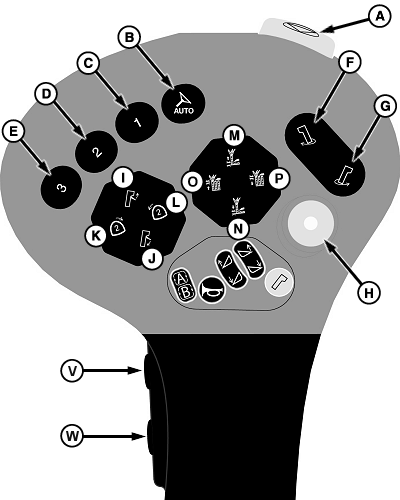

Front View

T8T1901-UN-23JAN15

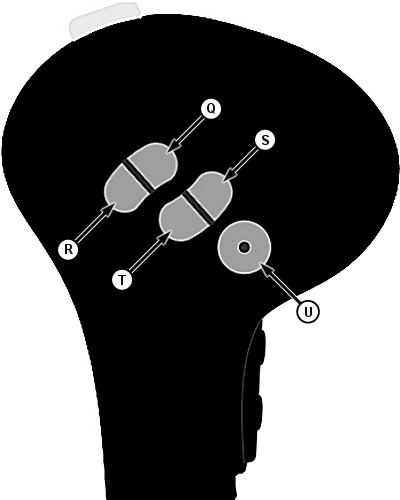

Rear View

A - Harvesting Functions Quick Stop Switch

B - AutoTrac™ Resume Switch

C - Configurable Switch 1

D - Configurable Switch 2

E - Configurable Switch 3

F - Elevator Swing Left Switch

G - Elevator Swing Right Switch

H - Elevator ON and OFF Switch

I - Elevator Discharge Flap Out Switch

J - Elevator Discharge Flap In Switch

K - Secondary Extractor Hood Rotate Left Switch

L - Secondary Extractor Hood Rotate Right Switch

M - Base Cutter Raise Switch

N - Base Cutter Lower Switch

O - Topper Raise Switch

P - Topper Lower Switch

Q - Right-Hand Crop Divider Raise Switch

R - Right-Hand Crop Divider Lower Switch

S - Left-Hand Crop Divider Raise Switch

T - Left-Hand Crop Divider Lower Switch

U - Horn Switch

V - Configurable Switch A

W - Configurable Switch B
