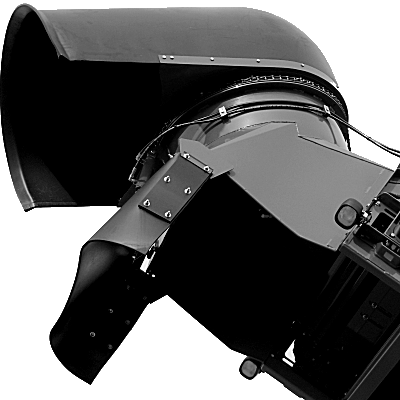

Secondary Extractor (If Equipped)

T8120002594
T8120002594-UN-17JAN13

This is the final stage in the cleaning process. As the cane falls from the end of the elevator into the transport, the secondary extractor (also using a fan) removes the remaining loose material. Separated debris is directed away from the field transport system and harvester by using the 360° rotating secondary extractor hood.

Secondary Extractor Options:

  • Secondary Extractor with Motor Driven Directional Discharge
  • High Performance Secondary Extractor with Motor Driven Directional Discharge
  • Less Secondary Extractor—A metal hood replaces the secondary extractor hood and fan.
    • This option is usually used in areas where sugar cane is burnt prior to cutting.

WM05597,0001198-19-20150109
