Lubricate Topper Assembly

  1. T8T665
    T8T665-UN-27JUN14

    T8140000373
    T8140000373-UN-17MAR14

    A - Fittings (4 used)

    B - Fittings (2 used)

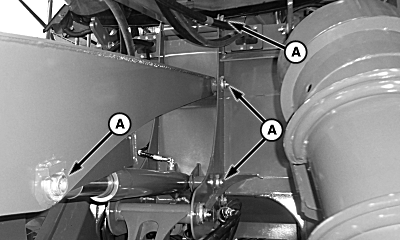

    Grease fittings (A) at machine end of boom.

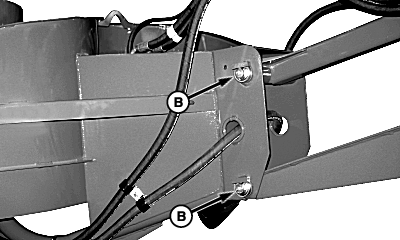

  2. Grease fittings (B) at topper end of boom.

WM05597,00011CB-19-20150206
