Lubricate Manual Tilt Crop Dividers

1.
   T8T2436-UN-28APR15

   Some Parts Removed For Clarity

   A - Fittings (6 used)

   B - Fittings (4 used)

   C - Fittings (2 used)

   D - Fittings (2 used)

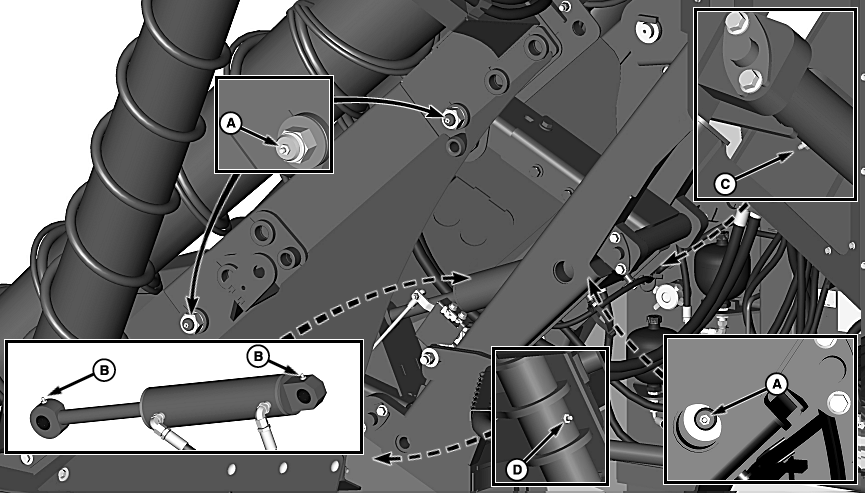

   Grease fittings (A) on crop divider mounting pins. Repeat on other crop divider.

---




2. Grease fittings (B) on cylinder ends. Repeat on other crop divider.

3. Grease fitting (C) on upper crop divider linkage. Repeat on other crop divider.

4. Grease fitting (D) on lower crop divider linkage. Repeat on other crop divider.
